Walkthroughs

Operator click-paths for the PFC console and config SPA. Screenshots are captured by scripts/capture_ui.py (Playwright) against a local admin with PFC_REQUIRE_AUTH=1.

This is not a HIPAA/SOC 2/ISO certificate.

Vocabulary: passthrough means destination in the clear, body ciphertext; lookup_id is the sender handle; NATS is the untrusted broker; inspect officers are share names, not Google accounts.

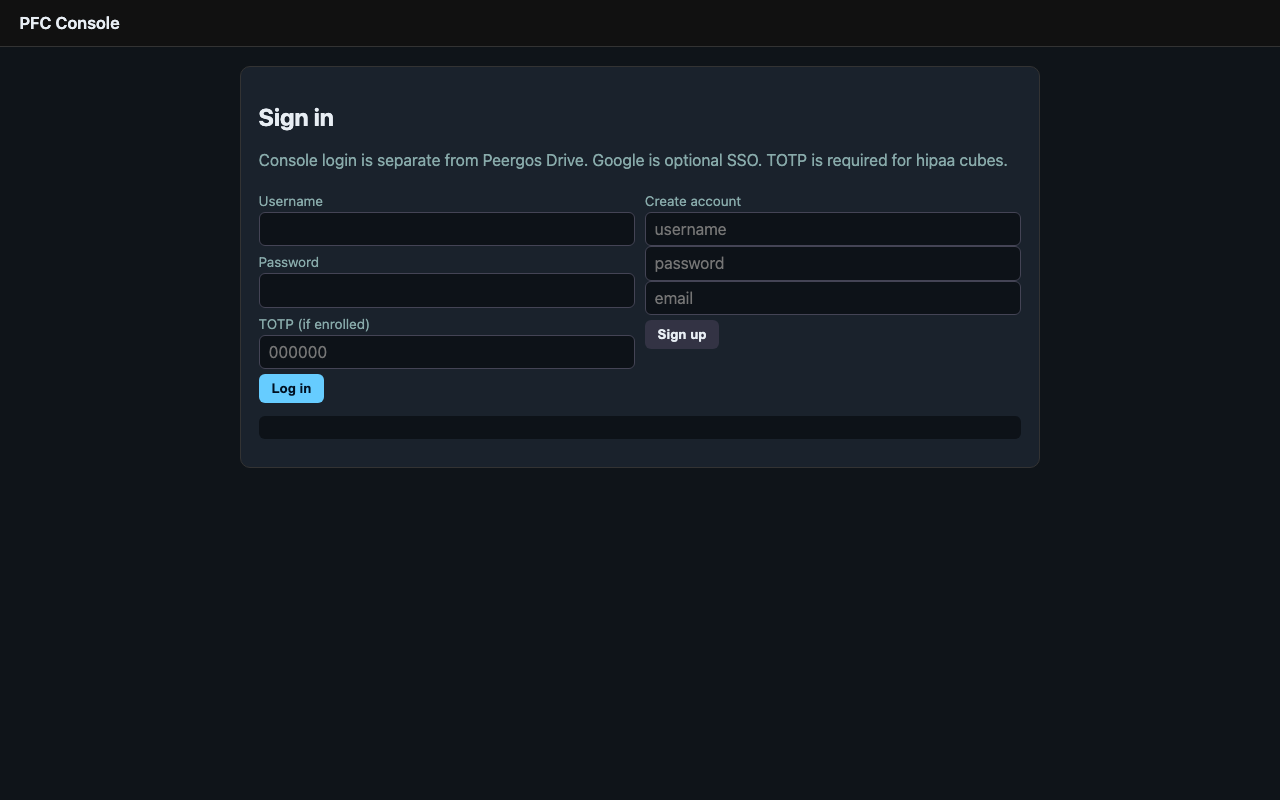

Console login (separate from Peergos Drive)

Capability. Create a console session. Drive login cannot unwrap cubes.

Steps.

  1. Open https://pfc.georgelambert.org — username, password, TOTP.

  2. First account becomes admin. Sign up, then enroll TOTP (authenticator URL).

  3. Confirm a 6-digit code. Session cookie pfc_sess.

Why. PFC_REQUIRE_AUTH=1. HIPAA APIs require totp_ok.

Outcome. Nav: Cubes, Catalog, Users, Inspect, Audit.

Storage. PFC_DATA UserStore JSON. Not Peergos cryptree.

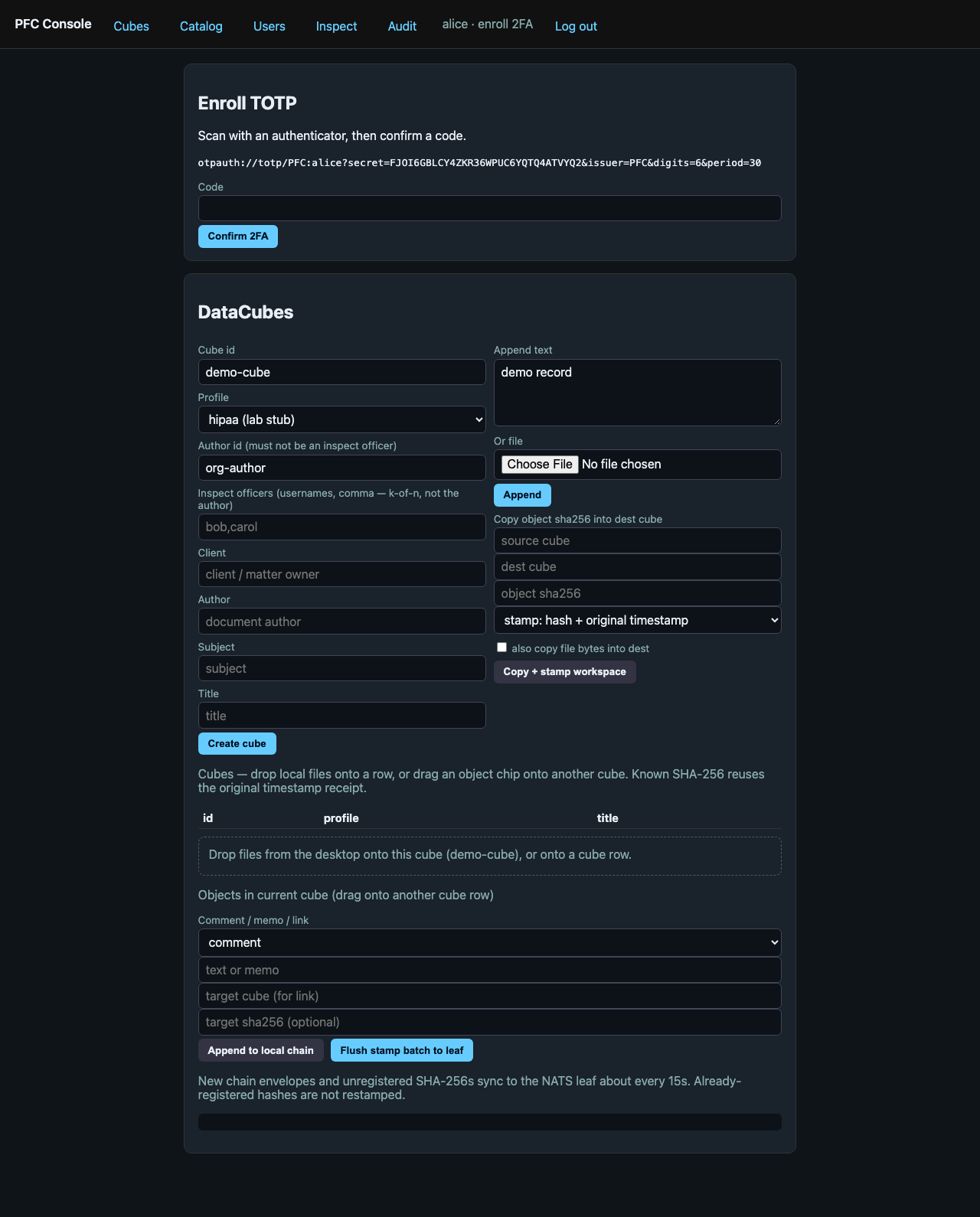

PFC console sign-in TOTP enroll

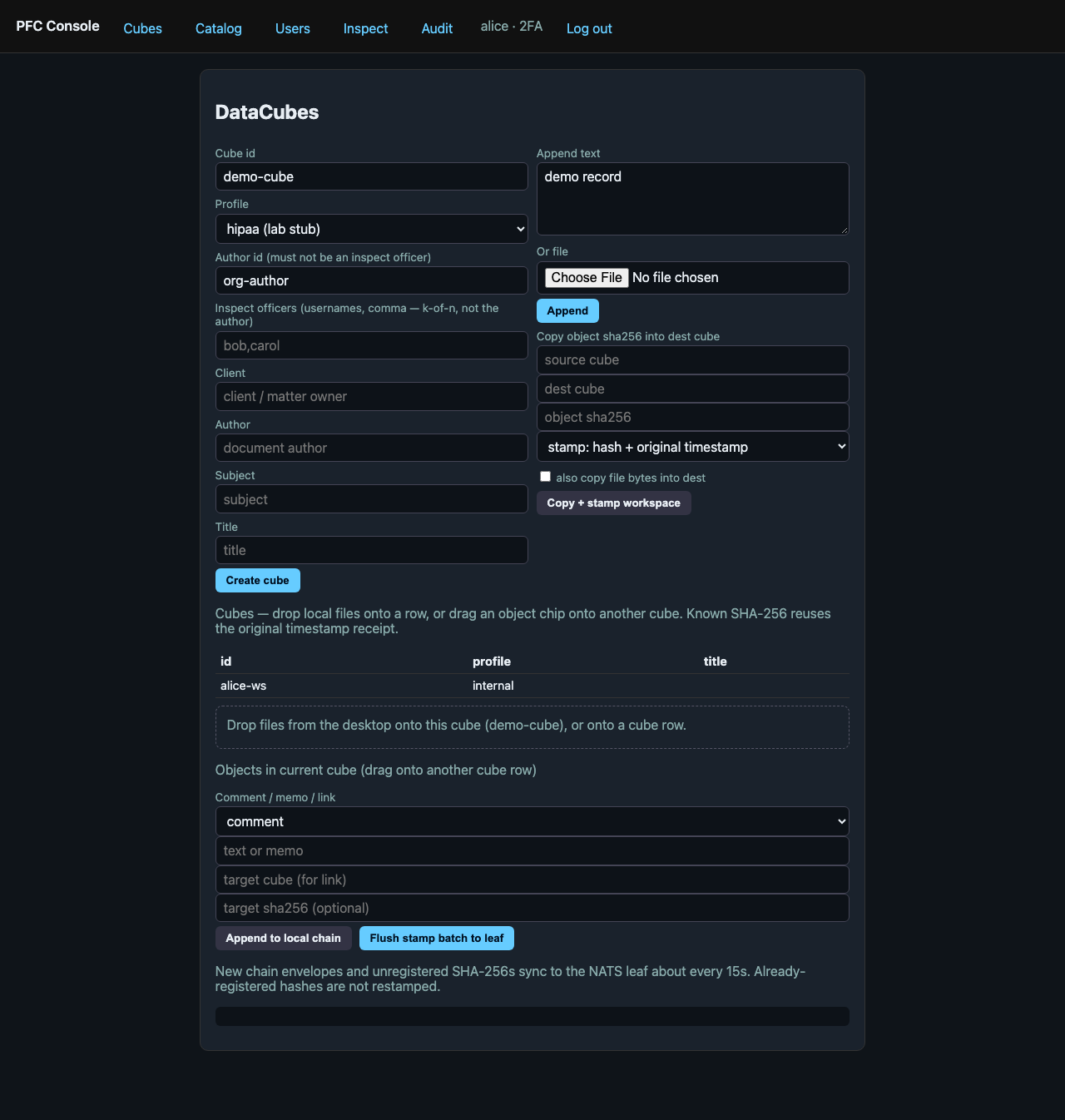

Cubes, catalog, copy+stamp

Capability. Workspace cube <user>-ws holds library cards (Client, Author, Subject, Title). Identity-preserving copy keeps original timestamp and SHA-256.

Steps.

  1. Create cube (hipaa lab stub or internal). Author must not be an inspect officer.

  2. Append text or drop a file. Catalog prompt: keep cube defaults or edit this item.

  3. Copy object into dest cube; stamp scope hash/public/sealed/files.

  4. Comments/memos/links append the cube chain; unregistered hashes flush to verae.ts.batch about every 15s.

Why. First registered SHA-256 wins. Known hashes are not restamped.

Outcome. Object chips; workspace catalog search.

Storage. cubes/<id>/ chain JSONL, catalog/card.json, hash registry. Pin via verae.storage.pin; replicate via verae.storage.replicate.

DataCubes Card catalog

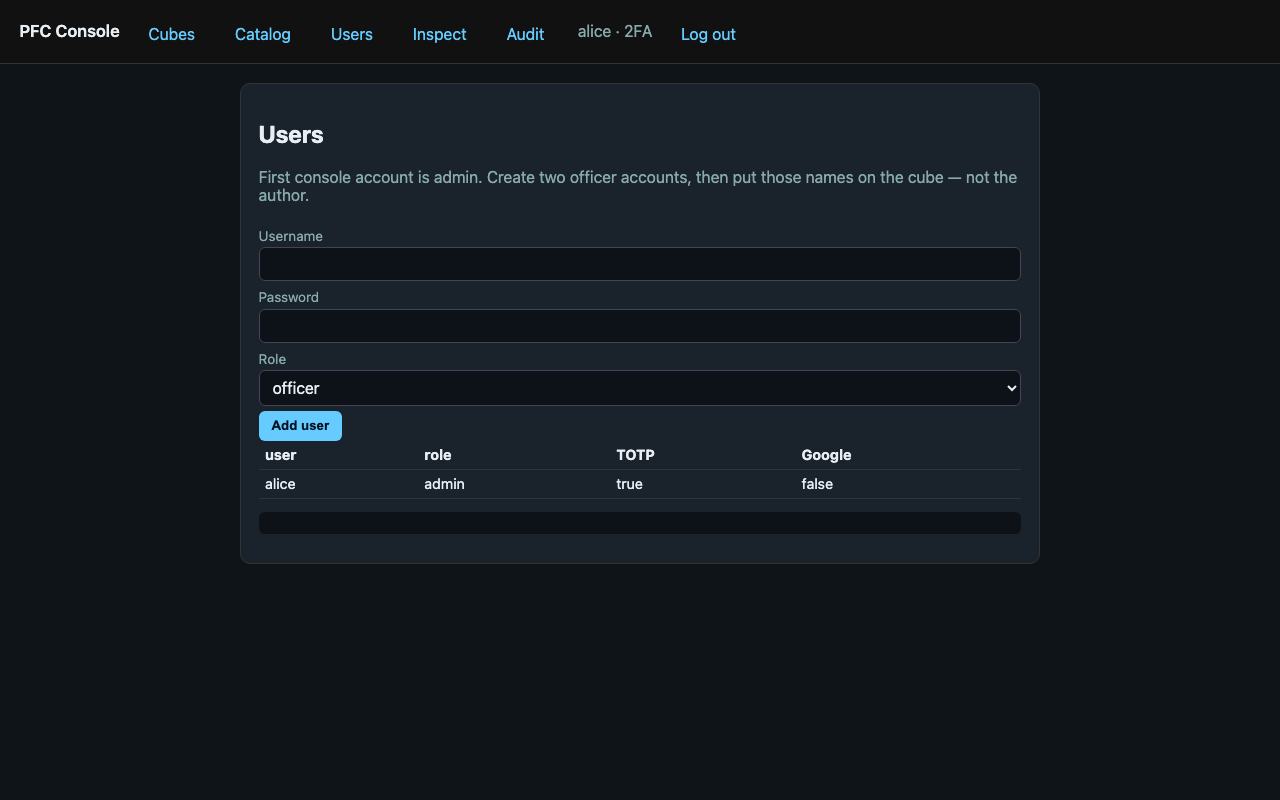

Users

Capability. Admin creates officer accounts for k-of-n inspect.

Steps. Add username/password/role. Officers enroll their own TOTP.

Why. Two-officer presence. Author is not an officer.

Storage. UserStore under PFC_DATA.

Users

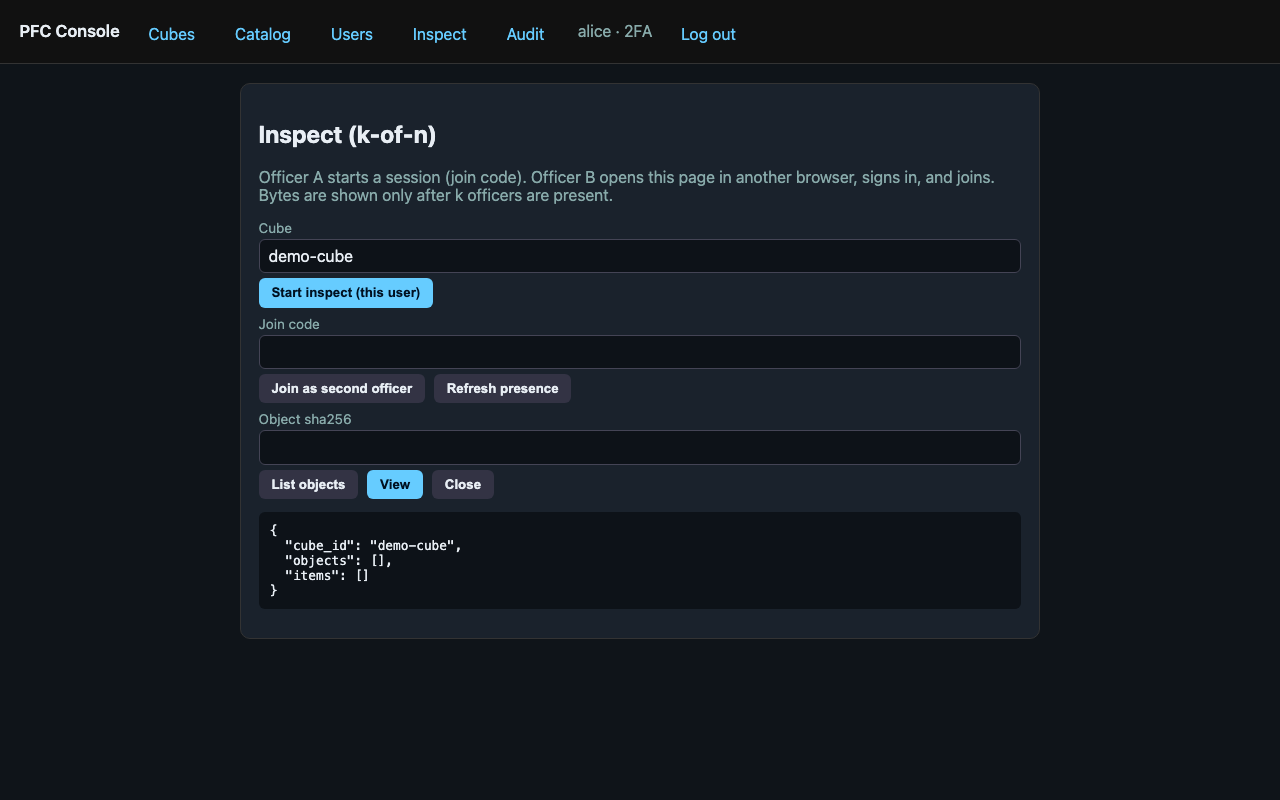

Inspect (k-of-n)

Capability. Viewer-only reveal after k officers present. Log-before-reveal.

Steps.

  1. Officer A Start inspect → join code (no session yet).

  2. Officer B Join with the code → session_id.

  3. View object by sha256. Close ends the session.

Why. Shamir shares; Google SSO does not decrypt cubes.

Outcome. Audit events. HIPAA file bytes stay gated without a session.

Storage. Pending inspect JSON + audit log on the cube.

Inspect

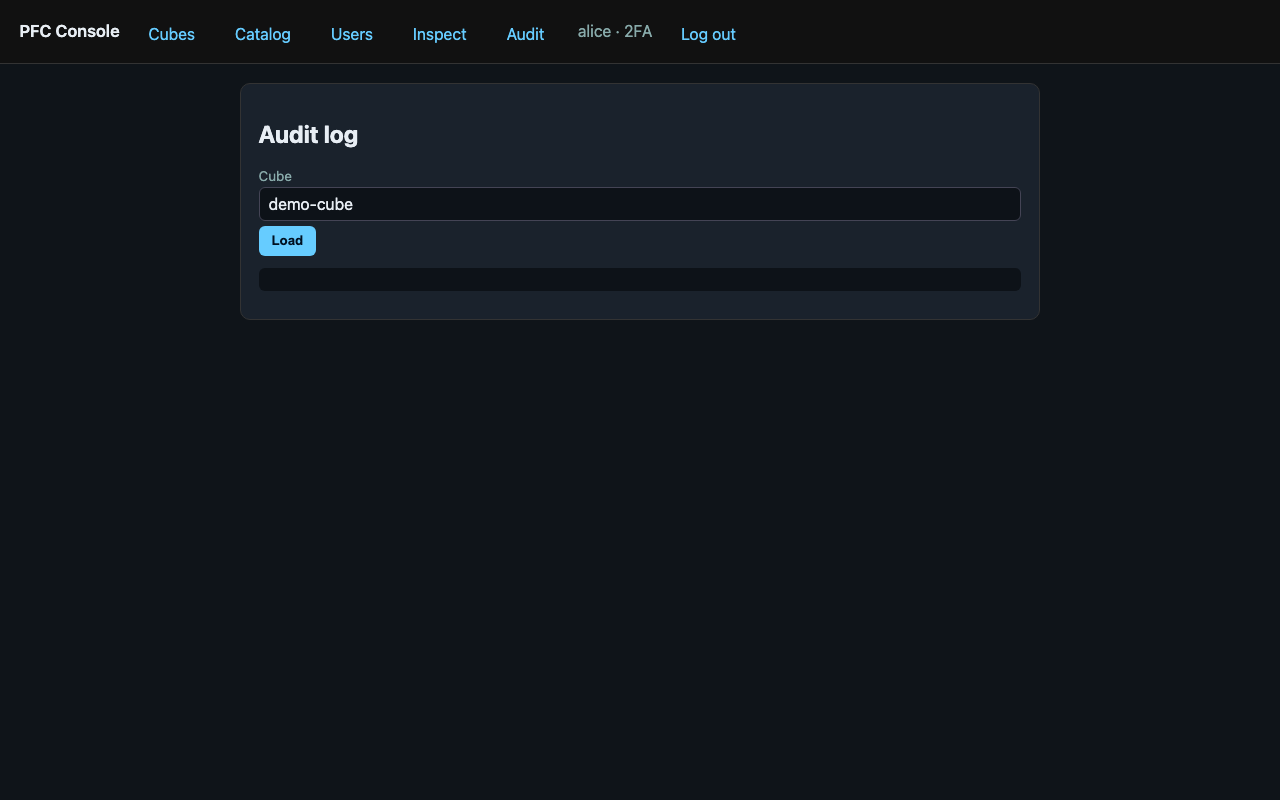

Audit

Capability. List access events for a cube (no payload bodies).

Steps. Enter cube id, Load.

Storage. Audit JSONL on the cube.

Audit

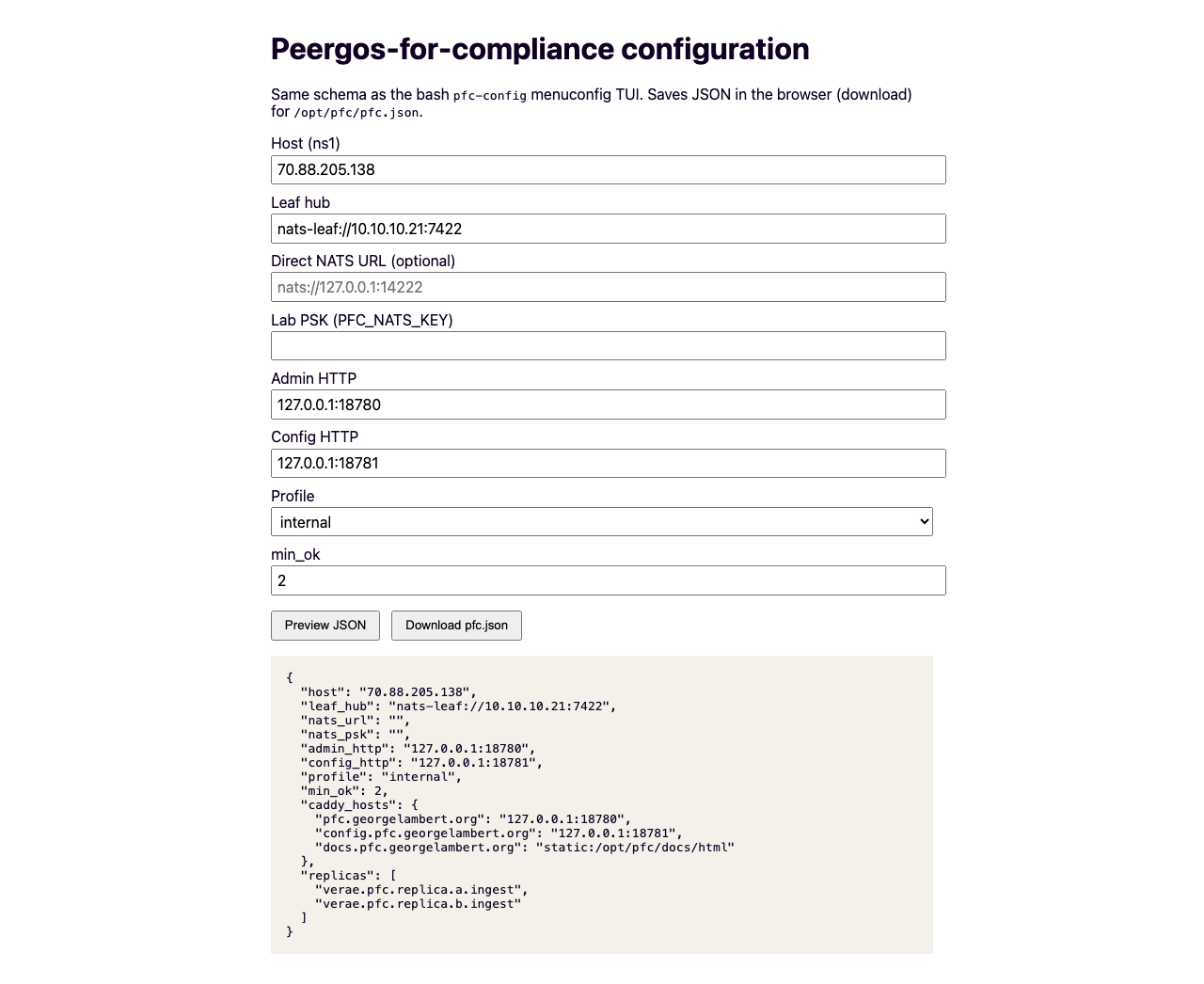

Config SPA (unsigned preview only)

Capability. Build a pfc.json preview. Load requires an Ed25519 signed wrapper. Admin POST /v1/admin/config signs and appends admin-history (prev + new + diff).

Steps. Fill host / leaf hub / NATS URL / profile / min_ok. Preview JSON. Download. Sign via console or secure_messaging.signed_config.sign.

Why. Unsigned files are rejected.

Config SPA

Secure message success vs failure

Success. verae.sm.send with to + ciphertext → ack accepted=true + lookup_id. Sender cannot reopen ct.

Failure. Missing to or empty ct → SM-MISSING-TO / SM-EMPTY-CT. Publishes verae.sm.log.summary (codes only), verae.sm.error (Network Error Bundle), verae.sm.dead. ct_sender is sender-only; ct_system is the ops bounce report.
